Digital Harmonic Power Clamp Meter measuring 3-phase power and harmonic for distribution box system RS232C interface
Features of Digital Power Clamp Meter
- Large dual 6000 counts LCD display
- Measures AC voltage, AC current, active power, apparent power, reactive power, power factor,
- frequency and harmonic
- True RMS measurement
- It is equipped with a large-size memory for saving up to 100 groups of test parameters
- Applied for single, three-phase circuit measurement, auto ranging on three-phase testing.
- Accurate measurement on current big wave
- Used professional single chip microprocessor with low power consumption, max measurement 20 times harmonic and various
- Mass memory for 100 groups data saved
- Provided RS232C connection interface and Windows graphics software
- Low battery indication
- Data hold and auto power off
| Specification | Range | Accuracy |
| AC Voltage | 80V/180V/400V/600V | ±(1.0%+5) |
| AC Current | 20A/40A/100A/200A/450A/1000A | ±(2%+5) |
| Single-phase active power | 30kW/60kW/120kW/150kW/300kW/600kW | ±(3%+5) |
| Three-phase active power | 3kW/12kW/30kW/120kW/150kW/600kW | ±(3%+5) |
| Power factor | 0.3~1 Capacitive | ±(2%+2) |
| 0.3~1 Inductive | ±(2%+2) |
| Passive power | 3kVAr/12kVAr/30kVAr/120kVAr/150kVAr/600kVAr | ±(3%+5) |
| Frequency | 30Hz/1kHz | 0.5%+1 |
| Harmonic | Harmonic number | Precision of harmonic voltage |
| 1 | ±(3.0%+10) |
| 2~6 | ±(3.5%+10) |
| 7~8 | ±(4.5%+10) |
| 9~10 | ±(5.0%+10) |
| 11~15 | ±(7%+10) |
| 16~20 | ±(10%+10) |
| Feature |
| Display | 6000 counts |
| Data Hold | √ |
| RS232C interface | √ |
| Back Light | √ |
| Auto Power Off | √ |
| Data recording and storage button | 100 groups |
| General |
| Power Supply | 4*1.5V AA Batteries |
| Size | 300mm*103mm*51mm |
| Jaw Size | φ50mm |
| Weight | 500g |
| Safety Rating | EN61010-1, EN61010-2-032, EN61326, CAT Ⅲ 600V |
Product Description of Digital Power Clamp Meter
MS2205 is a hand-held intelligent harmonic power tester, with both functions of digital current testing and power testing. The tester is comprised of three channels including voltage, current, and power as well as a micro single chip system, and it is equipped with a powerful software for measurement and data processing functions; it can measure, calculate, and display voltage, current, active power, power factor, apparent power, passive power, frequency, harmonic parameters, with stable performance and operation convenience. The meter is especially suitable for the measurement and examination of on-site power equipment and power-supplying circuits; with hand-held clamp structure, small volume, and light weight, it can be easily carried by the user, which makes it easy and fast for doing measurement. For measurement of singe-phase/three-phase power. The meter is your ideal choice.
- Max. common-mode voltage: 600V AC RMS
- Mode of display: LCD display; Max. reading 6000
- Range selection: Fully automatic range selection
- Data holding: “Hold” is shown on LCD

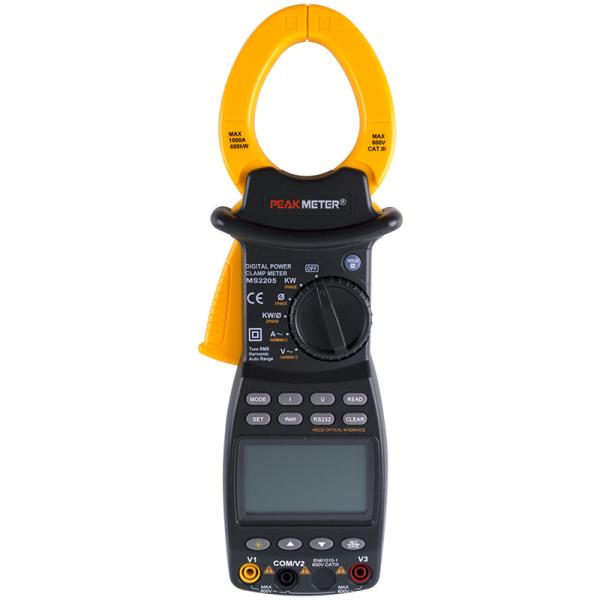

Detailed Images of Digital Power Clamp Meter
